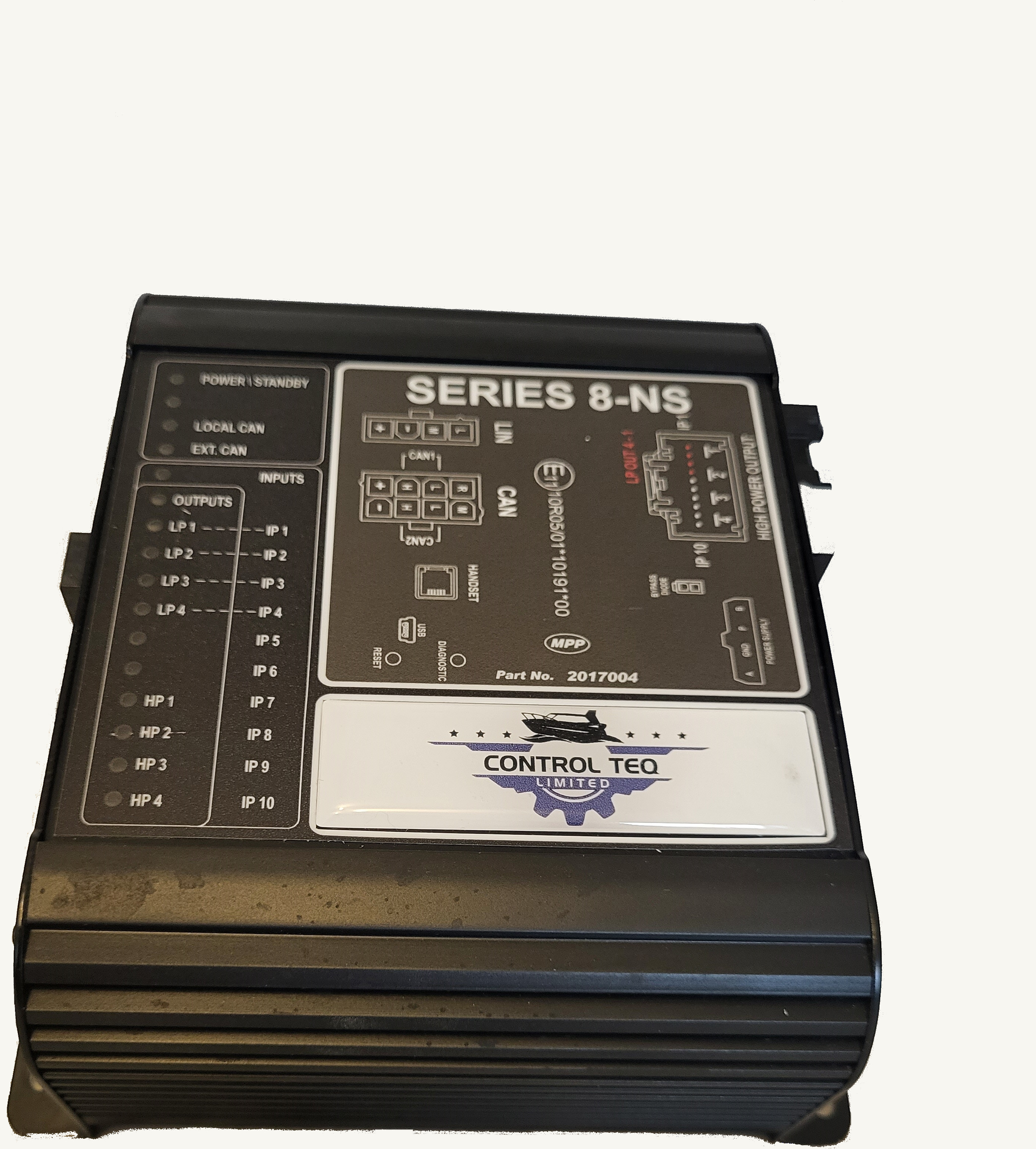

LV-SERIES-8

8 Output control unit

Features

• 4 High Power (20A) outputs.

• 4 Low Power (2.5A) outputs (Positive or negative switching), These could also be configured as inputs.

• 6 Positive or negative switching inputs.

• USB & RS484 interface for programming.

• Split Charging.

• Runlock.

• Battery monitoring (load shedding)

• Local CAN interface for expansion modules, slaves,

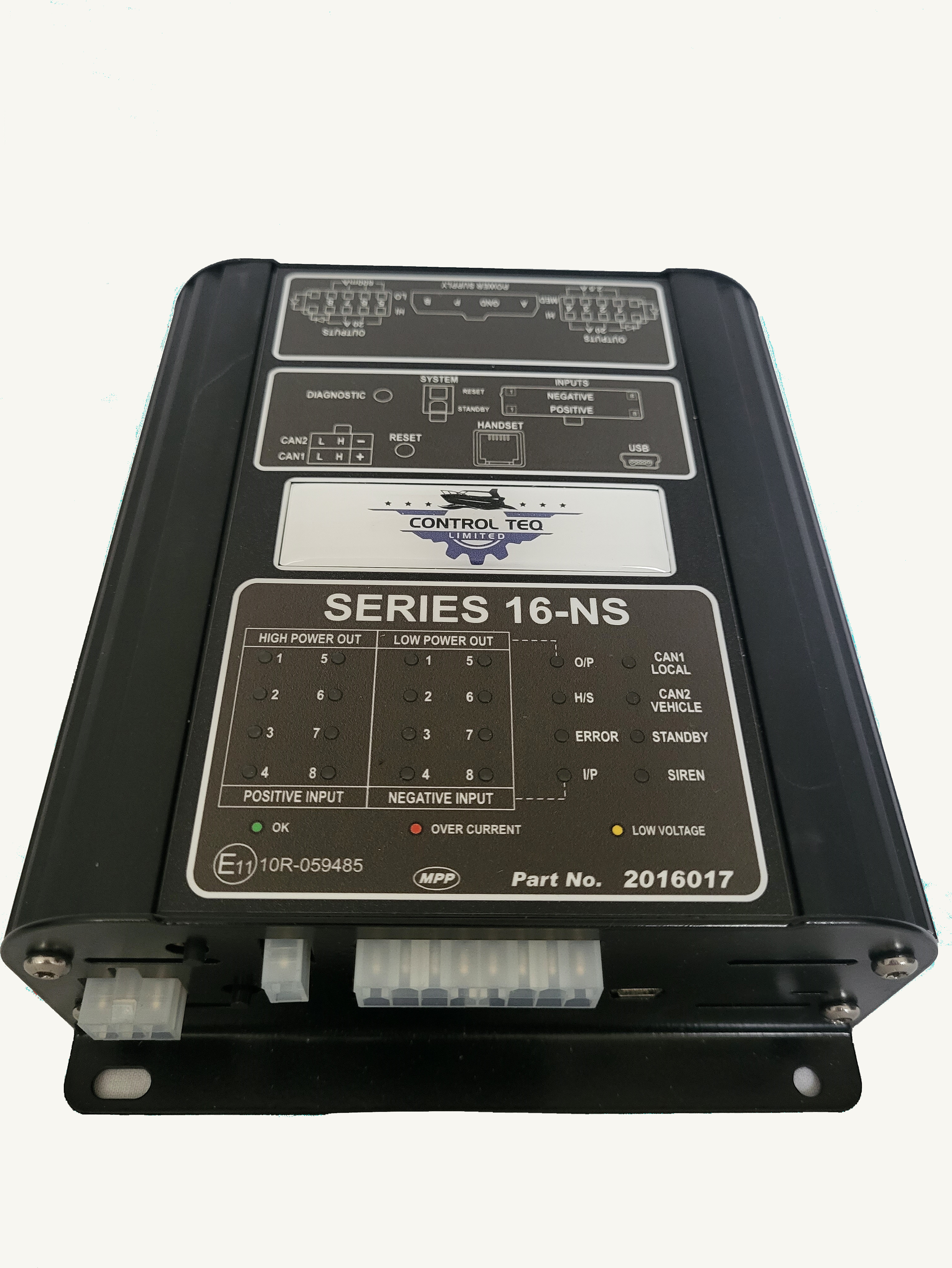

LV-SERIES-16

16 Output control unit

Features

• 8 high Power (20A) outputs

• 4 Medium power (2.5A) outputs

• 4 Low power (600mA) positive and negative outputs

• 8 Positive switching inputs

• 8 Negative switching inputs

• 24 illuminated status indicators for user interface

• CAN Interfaces

• RS485 Interface

• Supports various industry standard handsets.

• Extremely low standby current

• Split Charging.

• Battery monitoring (load shedding)

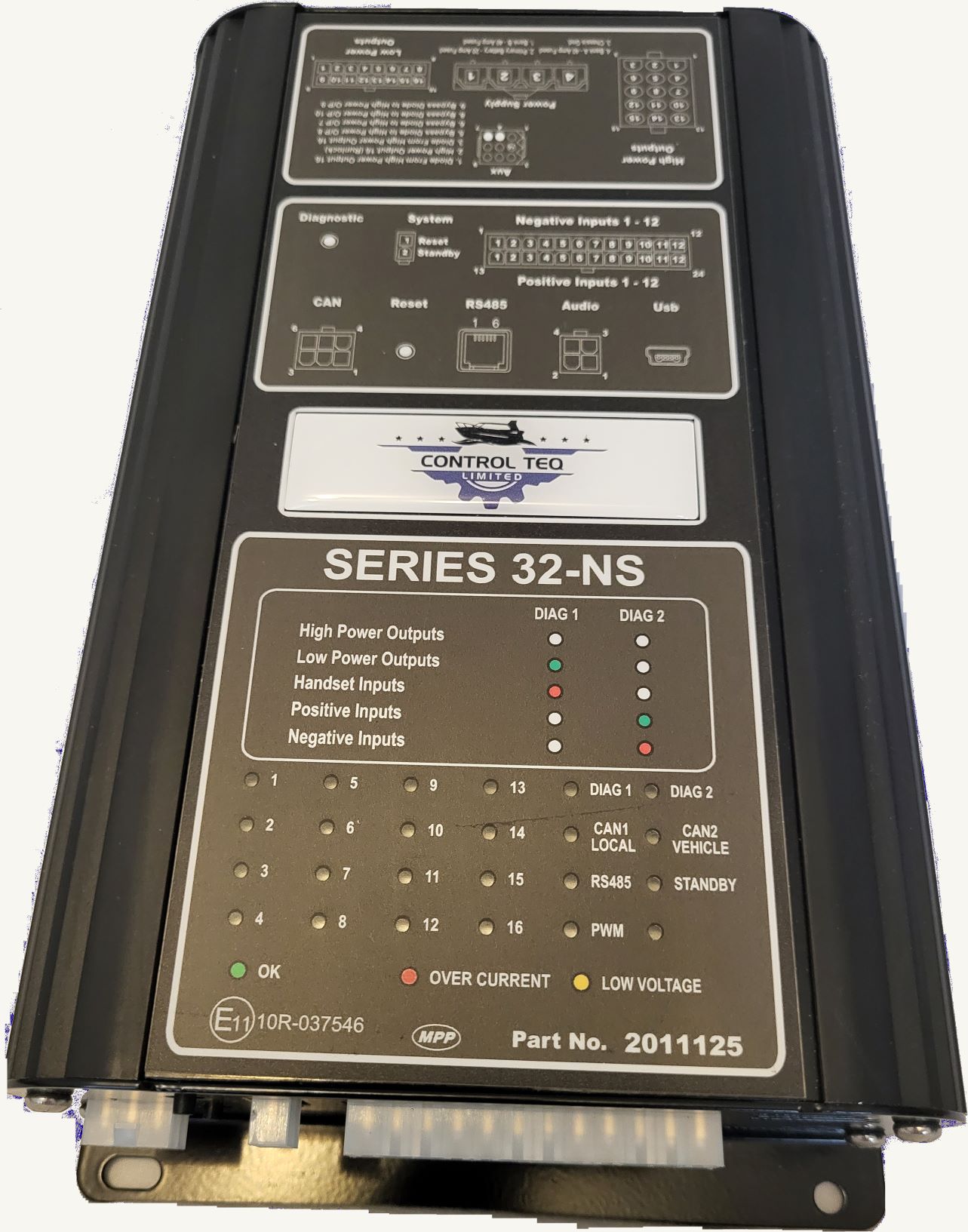

LV-SERIES-32

32 Output control unit

Features

• 16 high Power (20A) outputs

• 4 Medium power (5A) outputs

• 12 Low power positive and negative outputs

• 12 Positive switching inputs

• 12 Negative switching inputs

• Diagnostic LED interface

• Audio announcement capabilities

• CAN interfaces

• RS485 Interface

• Supports various industry standard handsets.

• Extremely low standby current

• Split Charging.

• Battery monitoring (load shedding)
